Stat-Rez® ESD Nano 375 Conductive System

SYSTEM DESCRIPTION

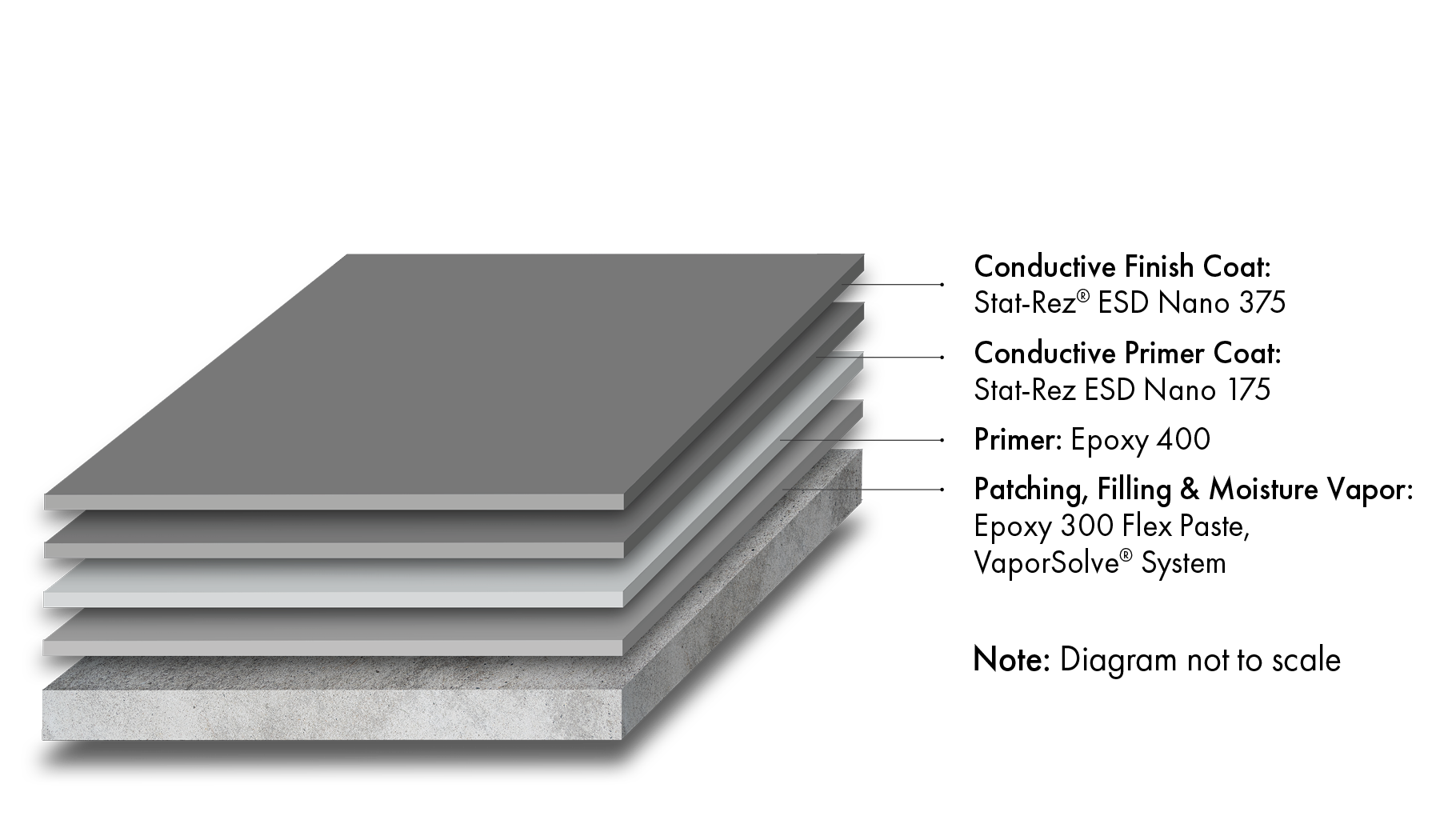

APF STAT-REZ ESD NANO 375 CONDUCTIVE is a three-layer, high performance electrically conductive epoxy flooring system consisting of a low viscosity epoxy primer, APF STAT-REZ 175 Conductive Primer, and APF STAT-REZ® ESD NANO  375 finish coat. The STAT-REZ ESD NANO 375 CONDUCTIVE system is engineered to be installed at 25-30 mils dry film thickness. This system provides a very durable, wear-resistant, electrically conductive surface that complies with ANSI S20.20-2021 Product Qualification and Performance Verification requirements, as well as other applicable ESD standards, including NFPA 77. It cures to a hard, impact-resistant flooring system with excellent abrasion and chemical resistance.

USES

• Electronics Manufacturing and Assembly
• Military/ Aerospace/ Aircraft Hangars
• Hazardous Industries (dust or explosion hazards)

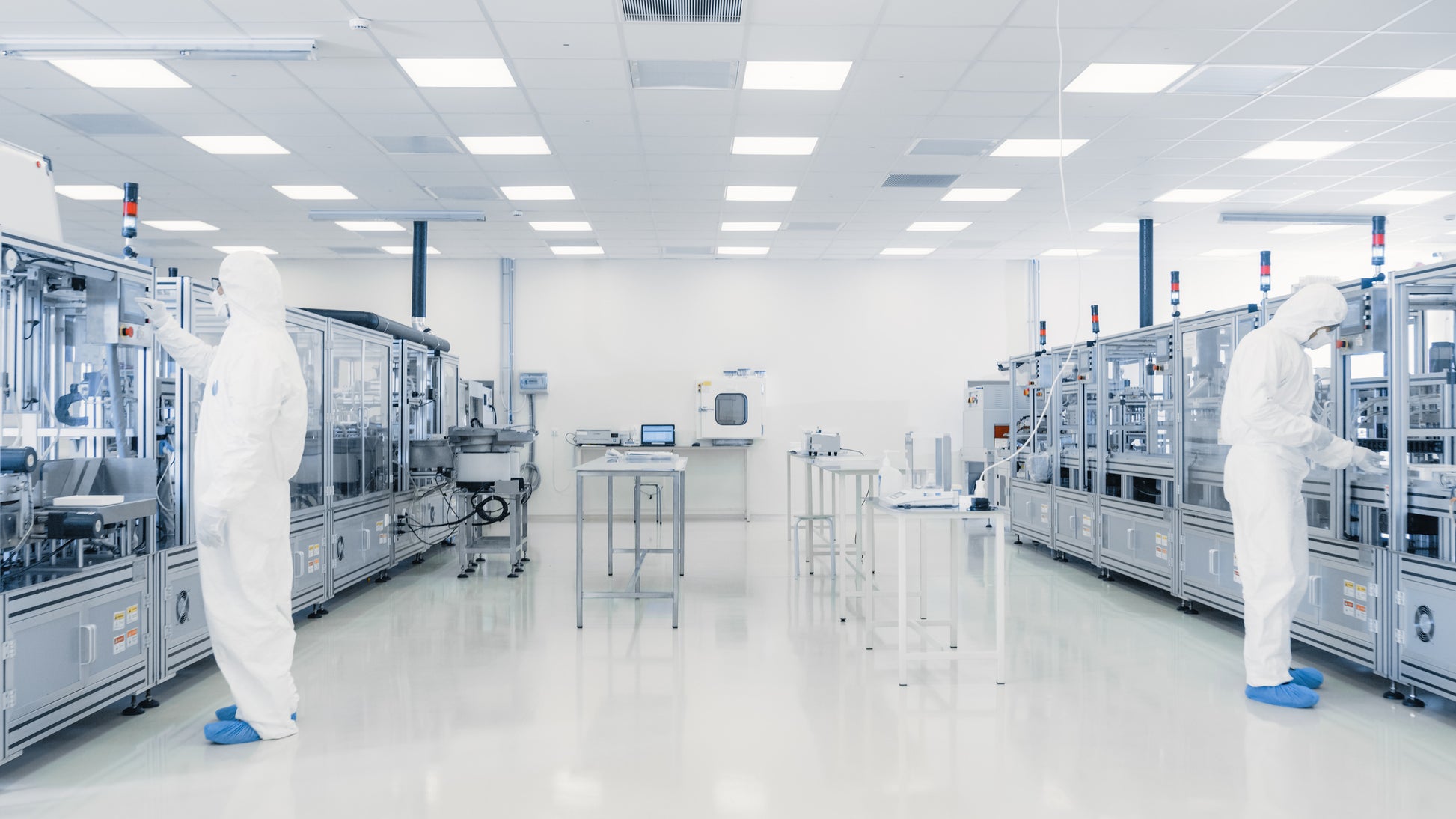

• Clean Rooms
• Pharmaceutical Facilities

ADVANTAGES

• NANO WISE^® Technology provides exceptional ESD performance
• Eliminates problems of metal-oxide and carbon fiber products
• Highly reflective, easily cleaned surface
• Resistant to common industrial chemicals
• Monolithic, seamless, non-porous
• Can be metered and certified the next day after application
• Low maintenance, no topical ESD treatments required

COLORS

Black, Buff, Light Gray, Slate, Concrete Gray, Sterling, Blue, Medium Gray.
